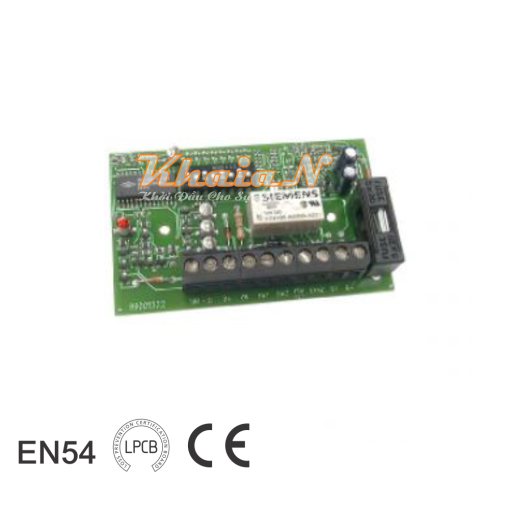

• Module to control sounders, can be inserted onto detection loop
• Inputs for local silencing button
• SYNC input, input for external box voltage drop
• 1 supervised output for sounders (1A max. current draw)
• Unit address is set via 8 dip-switches
• Dimensions W 80 x H 50 x D 20mm
• Allocable in BOX1 (optional)
• Power consumption 130μA (quiescent mode), 500μA (alarm mode)
• Requires DC24V power supply from power supply box
