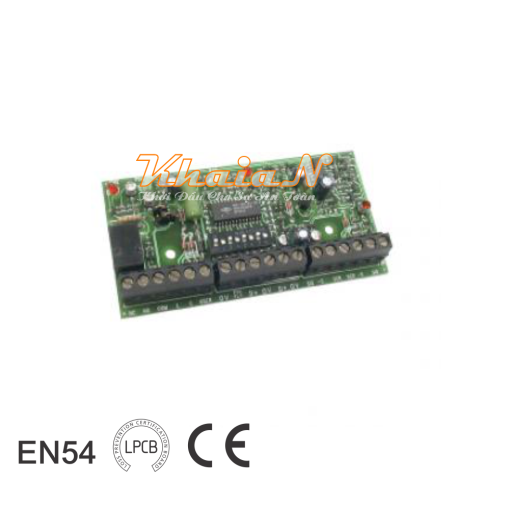

• Control and monitoring module, can be inserted onto the detection loop, used to monitor conventional detectors
• Unit address is set via 8 dip-switches
• 1 x open-collector output, 10mA at DC24V, 1 x C/NC/NO relay output, 2A at DC30V
• Dimensions W 100 x H 52 x D 20mm
• Allocable in BOX1 (optional)
• Power consumption 250μA (quiescent mode), 300μA (alarm mode)
• Power supply DC24V supplied by loop
